TOYOTA TUNDRA BED RACK INSTRUCTIONS





TACOMA TUNDRA AND GLADIATOR BED RACK INSTRUCTIONS

THANK YOU FOR PURCHASING OUR RACK SYSTEM!

ALL RACKS COME WITH TEXTURED BLACK POWDER COAT

2 BED RAILS AND NECESSARY ¼" THREADED NUT PLATES

6 UPRIGHTS

3 TOP CHANNELS (2 LOGO 1 WITHOUT)

2 ACCESSORY PANELS

4 TENT BARS

ALL HARDWARE NEEDED TO ASSEMBLE

IT IS BEST TO HAVE ONE FRIEND TO HELP YOU TO INSTALL IT, ALTHOUGH YOU CAN DO IT YOURSELF

IT’S GOING TO TAKE YOU A COUPLE OF HOURS TO INSTALL

YOU ARE GOING TO NEED

¼" DRIVE OR 3/8” DRIVE RATCHET

¼" DRIVE WORKS THE BEST BECAUSE IT’S SIZE IS SMALL TO GET BEHIND THE RACK

½" SOCKET

½" WRENCH

9/16” SOCKET FOR THE SOFTOPPER CLAMPS

CANVAS CAGE BED RACK COMES COMPLETE WITH EVERYTHING YOU NEED EXCEPT HAND TOOLS

NO DRILLING OR MODIFICATIONS REQUIRED

ALL THE BOLTS ARE THE SAME FOR THE RACK, ONLY THE BED RAIL CLAMPS WILL USE DIFFERENT WASHERS

THE BOLTS ARE 5/16” X1” X 18

THREAD TORQUE IS 13 FT LBS

ALL BOLTS USE A WASHER ON THE BOLT SIDE AND THE NUT SIDE

VERY IMPORTANT: LEAVE THE BOLTS LOOSE UNTIL ALL THE BOLTS ARE IN

LET'S INSTALL IT!

PARK THE TRUCK ON A LEVEL SURFACE

2 IF THE SOFTOPPER IS ON, LOOSEN AND REMOVE THE SOFTOPPER CLAMPS ON ONE SIDE

3 LOCATE THE FRONT/ FLAT END OF THE BED RAILS



WITH THE FLAT EDGE OF THE BED RAILS FACING FORWARD SLIDE THE FIRST BED RAIL UNDER THE PASSENGER SIDE SOFTOPPER 1” BAR AND LET IT SIT

5 WITH THE FLAT EDGE OF THE BED RAILS FACING FORWARD SLIDE THE SECOND BED RAIL UNDER THE DRIVER SIDE SOFTOPPER 1” BAR AND LET IT SIT







6 POP THE END PLATE OFF THE FACTORY ACCESSORY TRACK, JUST PUSH IN AND BACK





 7 SLIDE THE NUT PLATES INTO THE TRACK TO MATCH UP WITH THE SLOTS IN THE BED RAIL MOUNTS

 YOU MAHE HAVE TO LOOSEN THE FIRST BOLT TO PULL THE RAIL OUT A LITTLE TO SLIDE THE NUT PLATE IN THE TRACK





8 PUT THE BOLTS IN AND LEAVE THEM LOOSE

DO NOT TIGHTEN THE SOFTOPPER CLAMPS YET

INSTALL ALL SIX UPRIGHTS ON THE BED RAIL SADDLES









AT THIS POINT YOU CAN UNSNAP THE SNAPS AND THIS WILL GIVE YOU MORE ROOM TO GET AT THE BOLTS, DO NOT TIGHTEN ANY BOLTS YET



10 INSTALL THE TOPS

THE LOGOS FACE OUT AND THE MIDDLE TOP CHANNEL HAS NO LOGO







NOW THAT YOU HAVE THE MAIN FRAME DONE







11 INSTALL THE TENT BARS, USE TOP OR BOTTOM HOLES AS NEEDED, THIS ALLOWS YOU TO PUT THE TENT BARS ANYWHERE ALONTHE TOP CHANNELS

THE PATTERN IS DIFFERENT FROM END TO END SO IF YOUR TENT OR BASKET ETC. DOES NOT LINE UP, TURN THE TENT BAR AROUND AND THE HOLE PATTERN WILL LINE UP

ANYWHERE IN THE TOP OF THE RACK, WITH THE SLOTTED HOLES YOU WILL BE ABLE TO BOLT UP YOUR GEAR



                                              TENT BAR HOLE PATTERNS









12 INSTALL THE ACCESSORY PANELS



THESE CAN GO ANYWHERE THEY LINE UP ON THE SIDES WITH THE HOLE PATTERNS

YOU CAN ADD AS MANY AS NEEDED TO FIT YOUR GEAR















NOW THAT YOU HAVE EVERTHING FINGER TIGHT, YOU CAN SNUG UP ALL THE BOLTS EXCEPT THE BED RAIL MOUNTS.

 YOU WILL NEED TO ADJUST FROM FRONT TO REAR TO MATCH UP WITH THE SOFTOPPER

MOVE IT FORWARD OR REARWARD TO GET IT WHERE IT LOOKS AND MATCHES UP THE BEST, ¼' OR A ½" AT A TIME

 BEST TO KEEP THE SOFTOPPER CLAMP ON THE BED RAIL CLOSE TO THE TENSION STRAP CLIP ON THE SOFTOPPER RAIL



















GIVE IT A GOOD LOOK AND MAKE SURE IT ALL LOOKS RIGHT

ONCE YOU HAVE IT WHERE YOU WANT IT, GO AHEAD AND START TIGHTENING THE BOLTS UP

13 FT LBS TORQUE IS ALL IT TAKES, SO DON’T OVER TIGHTEN THEM

LOCKTITE THE BED RAIL CLAMP BOLTS

GET OUT AND GO CAMPING, ENJOY YOUR NEW SET UP!

THANK YOU FOR YOUR BUSINESS

IF YOU NEED ASSISTANCE PLEASE CALL US AT 208 713 1359 MST 8:00AM TO 5:00PM

IF YOU NEED WEEKEND HELP EMAIL US sales@datinfab.com

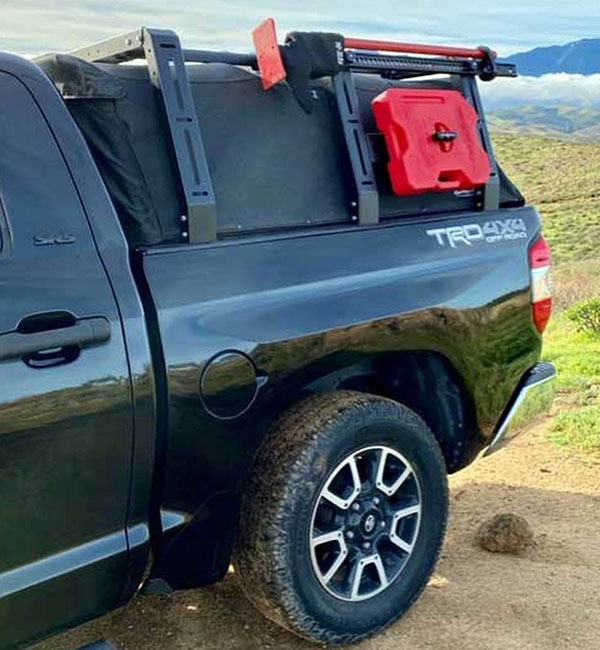

 ALL RACKS COME WITH TWO ACCESSORY PANELS

SHOWN BELOW WITH ONLY ONE ACCESSORY PANEL INSTALLED
